Name: Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

Haus > Produkte > IBC Schweißmaschine >

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Fully Automatic IBC Tube Pressing and Forming Machine

Hydraulic Pressing IBC Frame Tube Forming Machine

Pipe End Shrinking IBC Tube Forming Equipment

Herkunftsort:

China

Markenname:

HWASHI

Zertifizierung:

Modellnummer:

WL-SQ-150K*2

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

Produktname:

Hwahsi Automatische Langrohrpress- und Formiermaschine für IBC-Edelstahlrahmenherstellung

Steuerungssystem:

SPS

Verpackung:

Holzverpackung

Spezifikation:

CCC

Garantie:

1 Jahr

Schweißstromquelle:

AC / MF DC

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1 Satz

Preis

Verhandelbar

Verpackung Informationen

Meeres würdiges Holzpaket oder PVC -Film für FCL

Lieferzeit

30 - 45 Arbeitstage nach Erhalt Ihrer Zahlung

Zahlungsbedingungen

L/C, T/T

Versorgungsmaterial-Fähigkeit

50 Sätze pro Monat

Verwandte Produkte

Video

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Erhalten Sie besten Preis

Video

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

Erhalten Sie besten Preis

Video

Vollautomatische IBC-Gitterkäfig-Produktionslinie mit Leckage-Test und 50sec/pc Schweißwirksamkeit

Erhalten Sie besten Preis

Video

IBC Cage Automatic Production Machine mit 60 Sekunden Zykluszeit pro Käfig ISO9001-zertifiziert und 2000kg Gewicht

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Kontakt jetzt

Produkt-Beschreibung

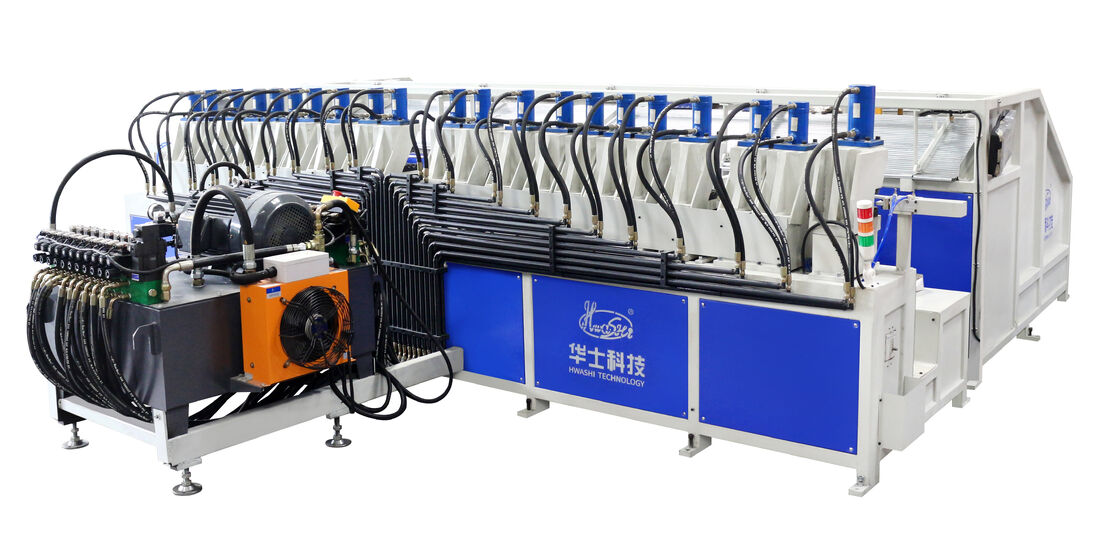

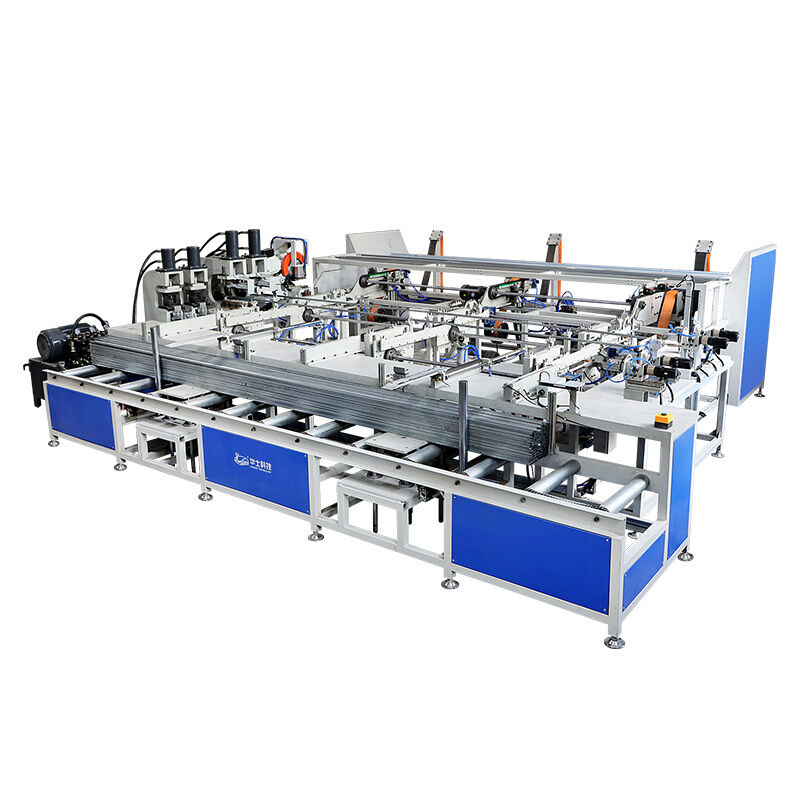

Hwahsi Automatic Long Tube Pressing And Forming Machine For IBC Stainless Steel Frame

The Hwahsi Automatic Long Tube Pressing and Forming Machine is a specialized custom solution designed for IBC tube processing in stainless steel frame manufacturing production lines. This advanced equipment enables fully automated pipe feeding, pipe end shrinking, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features & Benefits

Fully Automatic Operation: Seamless automated processing eliminates the need for human intervention
Pipe End Shrinking Capability: Ensures precision and consistency in IBC tube shaping to meet quality standards
Efficient Hydraulic Pressing: Advanced hydraulic system enhances tube formation efficiency and final product quality
Automatic Unloading: Integrated unloading process streamlines production workflow and minimizes downtime
Manpower Savings: Eliminates operator requirements, significantly reducing labor costs
Production Rate Enhancement: Advanced automation delivers substantial increases in production output within shorter timeframes

Operation Process

Finished Product

Processing Workflow:

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station. The mechanical arm picks up two pipes simultaneously and positions them for hydraulic pressing and tube end shrinking. After pressing completion, finished tubes are automatically unloaded onto the conveyor system, which transfers the final materials into the collection trolley.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic
Pressing Mark Number	20
Cutting Function	Yes
Each Time Processing Number	2 pieces
Efficiency	12-15 seconds per 2 pieces

Advanced Manufacturing Solution: The IBC Long Tube Automatic Pressing and Forming Machine represents cutting-edge technology in IBC tube processing, providing manufacturers with a reliable, high-speed, and labor-saving solution to optimize production capabilities and enhance operational efficiency.
