Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply

7-Axis CNC Control Sheet Metal Spot Welding Machine

Double Heads Welding Automatic Sheet Metal Welder

Medium Frequency Inverter Power Supply CNC Sheet Metal Welder

Herkunftsort:

China

Markenname:

HWASHI

Zertifizierung:

CE/CCC/ISO

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

Produktname:

Hwashi CNC Seven 7-Achsen-Doppelkopf-Blatt-Metall-Spot-Schweißmaschine, automatischer Blatt-Metall-S

Garantie:

12 Monate

Zustand:

Neu

Lebensdauer:

8-10 Jahre

Leistung (kW):

160kvax2

Frequenz:

1000 Hz

MAX.WELDING -DIAL:

2+2mm

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1 Satz

Preis

Verhandelbar

Verpackung Informationen

Meeres würdiges Holzpaket

Lieferzeit

7-30 Arbeitstage nach Erhalt Ihrer Zahlung

Zahlungsbedingungen

L/C, T/T

Versorgungsmaterial-Fähigkeit

50 Sätze pro Monat

Verwandte Produkte

Video

HWASHI Automatische Spot-Schweißmaschine mit 34000A Max-Strom 1200mm verstellbare Breite und digitale Touchscreen-Steuerung für Blechmetall

Erhalten Sie besten Preis

Video

Hwashi CNC Sieben 7-Achsen-Doppelkopf-Blatt-Metall-Schweißmaschine Automatische Spot-Schweißmaschine für Squatrack

Erhalten Sie besten Preis

Video

Hwashi Security Edelstahl-Blatt-Türplatte Multi-Punkt-automatische mobile Spotschweißmaschine, Blechschweißmaschine

Erhalten Sie besten Preis

Video

Hwashi neueste automatische Türblatt Metall Gantry Typ Inverter Schweißmaschine

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Kontakt jetzt

Produkt-Beschreibung

Hwashi CNC Seven 7-Axis Double Heads Sheet Metal Spot Welding Machine

This automatic sheet metal welder for squat racks is custom-engineered to meet your specific welding requirements and product specifications.

Advanced CNC Control System

The machine features two independent welding mechanisms controlled by a sophisticated CNC servo system. This includes X-direction mobile welding and Y-direction table movement, enabling precise welding at various positions. The welding mechanisms also provide Z-direction lifting and A-direction rotation capabilities, with the CNC system coordinating all seven axes for optimal positioning and welding performance.

Key Features & Benefits

Medium frequency inverter power supply for consistent welding performance
Fully automated welding production with programmed position control
Operator only required for product loading and unloading
Significantly improved product quality and production efficiency
Reduced production costs and elimination of manual welding inconsistencies
High automation degree with reliable, repeatable results

Industrial Applications

Primarily used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be efficiently welded by standard fixed welders. Widely applied across multiple industries including automotive manufacturing, civil sheet metal fabrication, security doors, cabinet production, and household appliances.

Customized Engineering Solutions

We provide comprehensive customized services tailored to your specific welding requirements. Our engineering team will collaborate with you to analyze your samples or technical drawings and develop optimal technical proposals for your application.

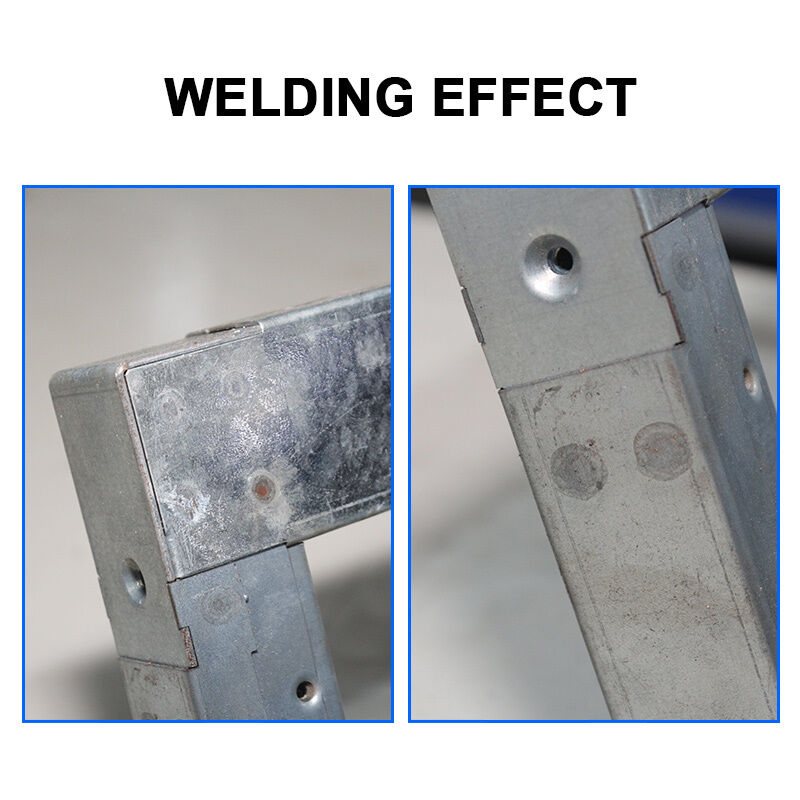

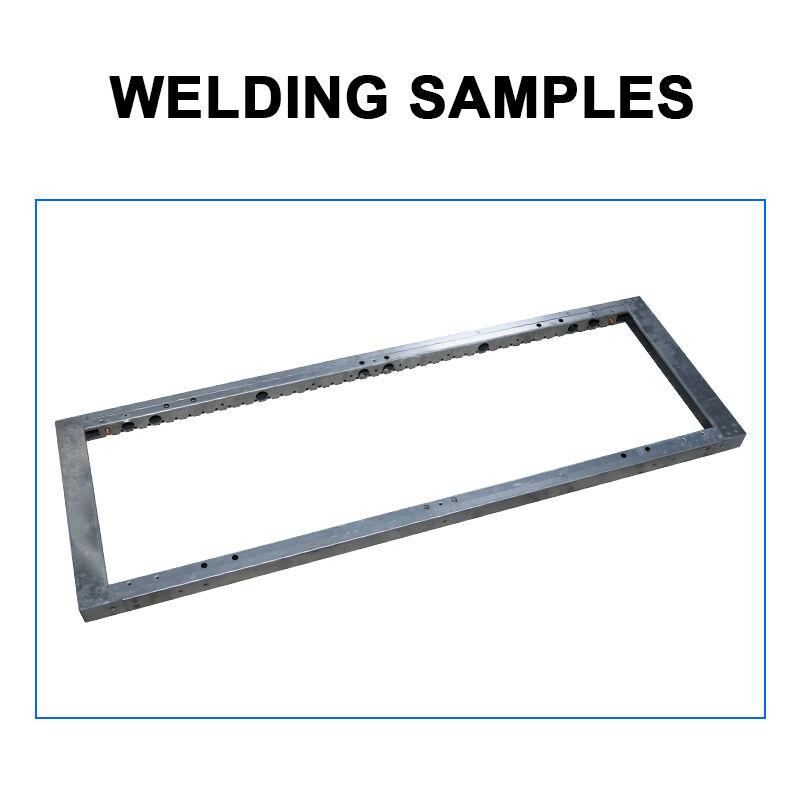

Welding Quality & Performance

Produces firm solder joints with consistent welding effects and reliable performance across all applications.

Technical Specifications

Item	Parameter
Rated Power	120KVA * 2
Duty Cycle	50%
Frequency	1000Hz
Effective Welding Length	1200mm
Effective Welding Width	2200mm
Welding Driving Power	Servo System
Maximum Moving Speed	500mm/s
Machine Dimension	L3800mm * W2600mm
Rated Air Pressure	0.6MPa
Water Temperature	10-25°C
