Name: Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SP-100K
Price: 14,000.00 USD
Availability: InStock

Haus > Produkte > Punktschweissen-Maschine >

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

Thermal Overload Protection Spot Welding Machine

Voltage Reduction Device AC Welding Machine

Intelligent Touch Screen Controller Industrial Welder

Herkunftsort:

China

Markenname:

HWASHI

Zertifizierung:

CE/CCC/ISO

Modellnummer:

WL-SP-100K

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

Produktname:

Hwashi Wechselstromschweißmaschine Punktschweißen für Aluminium, Kupfer, Messing, Edelstahl Schweiße

Anwendung:

Schweißen des kupfernen Aluminiumstahls

Größe:

850x900x1850*mm

Gewicht:

450kg

Zustand:

Neu

Garantie:

12 Monate

Zertifikat:

CE/CCC/ISO

Lebensdauer:

8-10 Jahre

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1 Satz

Preis

Verhandelbar

Verpackung Informationen

Meeres würdiges Holzpaket

Lieferzeit

7-30 Arbeitstage nach Erhalt Ihrer Zahlung

Zahlungsbedingungen

L/C, T/T

Versorgungsmaterial-Fähigkeit

50 Sätze pro Monat

Verwandte Produkte

Video

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

Erhalten Sie besten Preis

Video

Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Technology and Adjustable Control System for Sheet Metal CE/CCC/ISO Certified

Erhalten Sie besten Preis

Video

HWASHI WL-MF-250K Vertikal-Typ Mittelfrequenz-Inverter-Punktschweißmaschine mit 1000Hz Technologie für konsistentes Blechschweißen

Erhalten Sie besten Preis

Video

HWASHI WL-MF-250K Vertikal-Typ Mittelfrequenz-Inverter-Punktschweißmaschine mit 1000Hz Technologie für konsistentes Blechschweißen

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Kontakt jetzt

Produkt-Beschreibung

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

The Hwashi AC Welding Machine is a versatile and advanced spot welding device designed for precise and efficient welding applications across various industries. Featuring high-frequency AC output for superior weld quality, this machine offers adjustable current and time controls for optimal welding parameters.

Advanced Features & Technology

Intelligent Welding Control System

Touch screen controller for easy input and reading of welding parameters with programmable settings for customization and repeatability.

Premium Materials Construction

Thicker copper plates and belts ensure stable conductivity and consistent welding performance with efficient cooling system.

Customizable Electrodes

Specialized electrodes designed for various materials including steel, aluminum, silver, stainless steel, and nickel steel.

Adaptive Structure Design

Custom machine shapes and molds designed according to specific welding product requirements and applications.

Safety & Protection Features

Thermal Overload Protection: Prevents overheating and ensures safe operation during extended use
Voltage Reduction Device (VRD): Reduces open-circuit voltage when not in use, minimizing electric shock risk

These efficient AC welding features combine advanced technologies with user-friendly controls to enhance weld quality, productivity, and safety. The adaptive arc control and durable construction make this machine ideal for high-volume production, delivering reliable and high-quality welds across various materials.

Technical Specifications

Model	Input Voltage	Input Power	Output Current	Pressurization	Electrode Stroke	Platform Distance	Electrode Distance
WL-S-3K	220V	10KVA	5000A	200kg	50mm	65-115mm	145-165mm
WL-S-5K	220V	10KVA	6000A	200kg	50mm	65-115mm	145-165mm
WL-S-10K	220V	10KVA	8000A	200kg	50mm	65-115mm	145-165mm
WL-S-16K	380V	16KVA	10000A	300kg	80mm	-	-
WL-S-25K	-	25KVA	12000A	300kg	80mm	-	-
WL-S-35K	-	35KVA	16000A	350kg	80mm	-	-
WL-S-50K	-	50KVA	19500A	500kg	80mm	-	-
WL-SP-25K	-	25KVA	12000A	300kg	80mm	145-225mm	320-420mm
WL-SP-35K	-	50KVA	16000A	350kg	80mm	145-225mm	320-420mm
WL-SP-50K	-	50KVA	19500A	500kg	80mm	145-225mm	320-420mm
WL-SP-75K	-	75KVA	24000A	1000kg	100mm	130-230mm	490-540mm
WL-SP-100K	-	100KVA	34000A	1000kg	100mm	130-230mm	490-540mm
WL-SP-150K	-	150KVA	40000A	1000kg	100mm	130-230mm	490-540mm
WL-SP-200K	-	200KVA	50000A	1500kg	100mm	130-230mm	490-540mm
WL-P-75K	-	75KVA	24000A	1000kg	100mm	130-230mm	-
WL-P-100K	-	100KVA	34000A	1000kg	100mm	130-230mm	-
WL-P-150K	-	150KVA	40000A	1000kg	100mm	130-230mm	-
WL-P-200K	380V	200KVA	50000A	1500kg	100mm	130-230mm	-
WL-P-300K	380V	300KVA	75000A	2000kg	100mm	130-230mm	-

Applications & Industries

Suitable for spot welding and projection welding of steel plate, stainless steel sheet, wire products, hardware decorative lighting, kitchen utensils, automotive industry, small household appliances, and various hardware applications.

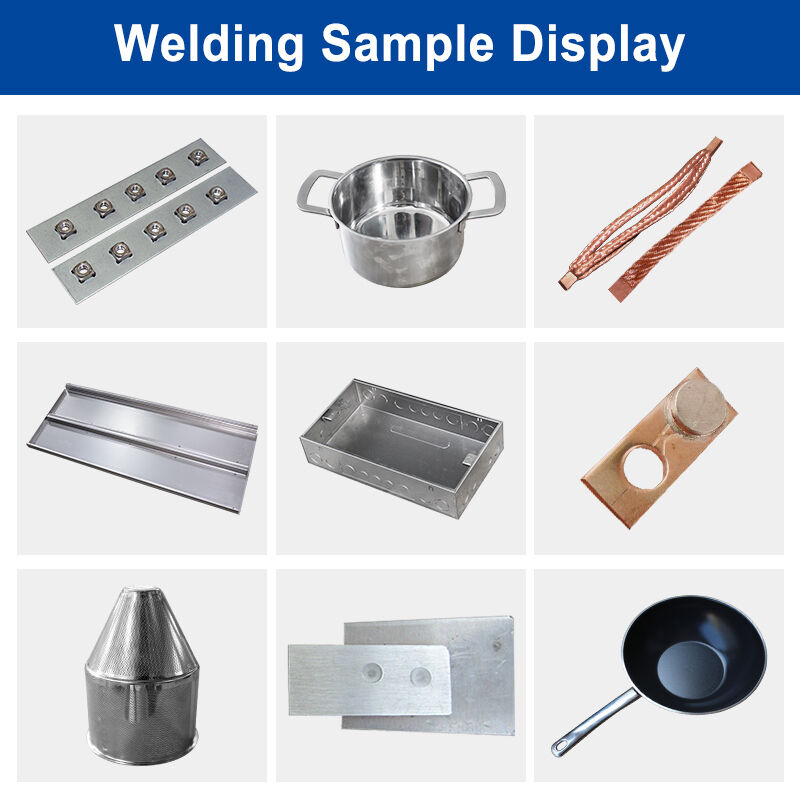

Application Samples
