HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current

1000Hz Inverter Technology Spot Welding Machine

Vertical Type Design Medium Frequency Inverter Spot Welder

DC Welding Current DC Spot Welder

Herkunftsort:

China

Markenname:

Hwashi

Zertifizierung:

CE

Modellnummer:

WL-CD-5K

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat
HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current
HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current
Produkt-Details
Produktname:
HWASHI WL-MF-250K Gerät zur Spotschweißung von Metallblechen mit mittlerer Frequenz
Garantie:
12 Monate
Größe:
850x900x1850*mm
Gewicht:
450 kg
Standard:
CE/CCC/ISO
Lebensdauer:
8-10 Jahre
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1
Preis
Verhandelbar
Verpackung Informationen
Meeres würdiges Holzpaket
Lieferzeit
7-30 Arbeitstage nach Erhalt Ihrer Zahlung
Zahlungsbedingungen
T/T, L/C
Versorgungsmaterial-Fähigkeit
50 Sätze pro Monat
Verwandte Produkte
Guter Preis HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current online Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current

Erhalten Sie besten Preis
Guter Preis Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications online Video

Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications

Erhalten Sie besten Preis
Guter Preis HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Technology for Consistent Metal Sheet Welding online Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Technology for Consistent Metal Sheet Welding

Erhalten Sie besten Preis
Guter Preis HWASHI WL-MF-250K Vertikal-Typ Mittelfrequenz-Inverter-Punktschweißmaschine mit 1000Hz Technologie für konsistentes Blechschweißen online Video

HWASHI WL-MF-250K Vertikal-Typ Mittelfrequenz-Inverter-Punktschweißmaschine mit 1000Hz Technologie für konsistentes Blechschweißen

Erhalten Sie besten Preis
Treten Sie mit uns in Verbindung
+86-13380655800
export_trade@hwashi.com
86-752-3528326
Kontakt jetzt
Produkt-Beschreibung

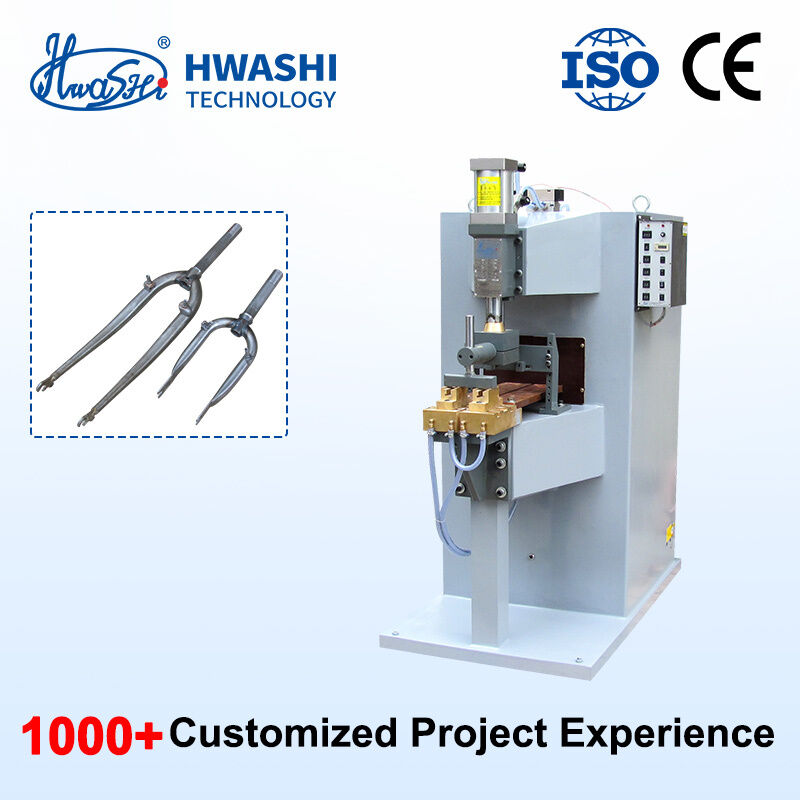

HWASHI WL-MF-250K Medium Frequency Inverter Spot Welding Machine
Vertical type medium frequency inverter spot welding machine designed for consistent metal sheet welding results with advanced inverter technology.
Advanced Inverter Technology
The MF Inverter Spot Welder utilizes three-phase power supply converted through specialized inverter technology to generate 1000Hz AC voltage. This is then transmitted to a medium frequency transformer and rectified to supply DC welding current for superior performance.
Technical Advantages
  • Significantly reduces energy consumption in iron core materials by increasing frequency from 50/60Hz to 1000Hz
  • Transformer commutation diodes convert electrical energy into efficient DC welding power
  • Dramatically improves inductance coefficient while minimizing production costs
  • DC welding circuit virtually eliminates energy loss associated with inductance coefficient
HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 0 HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 1
Premium Construction Features
HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 2
Standard Raw Materials
Thicker copper plates or copper belts ensure stable conductivity during welding operations.
HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 3
Custom Electrode Processing
Customized electrodes suitable for various materials including steel, aluminum, silver, stainless steel, and nickel steel.
HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 4
Optimized Structure Design
Custom machine shapes and molds designed according to specific welding product requirements.
Key Features
  • Three-phase power supply with grid balance and minimal grid impact
  • High power factor of 0.7-0.9 (compared to 0.4 for power frequency)
  • Superior welding control accuracy with 1000Hz+ inverter frequency
  • 20x higher control capability than AC welding machines
  • Excellent welding quality with stable nugget size and minimal spatter
  • Reduced grid power demand - only 2/3 of AC resistance welding machines
  • Short welding times and extended electrode life
  • User-friendly interface with multiple welding specifications storage
  • Real-time monitoring of welding current, time, pressure, and cooling water flow
Technical Specifications
Model WL-MF-100K
Input Power (V/φ) 380/3
Rated Power (KVA) 100
Applicable Material Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA) 21
Electrode Force (KG) 1000
Electrode Stroke (MM) 100
Dimension(L*W*H) 950mm*800mm*1675mm
Warranty 1 year
Application Examples
HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 5 HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 6 HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current 7
