Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF100K
Price: 30,000.00 USD
Availability: InStock

Haus > Produkte > Maschendraht-Schweißmaschine >

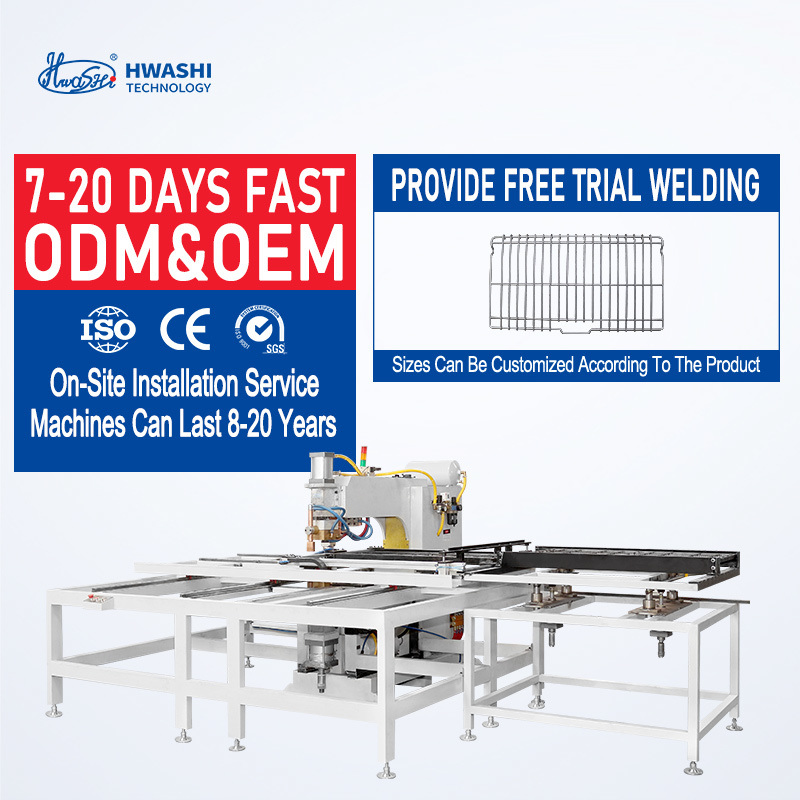

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

3000mm Effective Welding Length Wire Mesh Welding Machine

1-5mm Welding Thickness Wire Mesh Welder

1000mm x 1000mm Mesh Welding Range Automatic Wire Mesh Welding Machine

Herkunftsort:

China

Markenname:

HWASHI

Zertifizierung:

CE/CCC/ISO

Modellnummer:

WL-SQ-MF100K

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

2D -Drahtgriff Biegermaschine:

Biegungsdrahtgriff für 2-6 mm Drahtbiegung

Wirksame Schweißbreite:

1200 mm

Produktkategorie:

Drahtnetzschweißmaschine

Produktname:

Schweißscheibenquelle Dreiphasen MF DC Netztesversorgungssystem für Drahtgitterschweißer

Drahtkanten -Trimmmaschine:

Schnitt die Drahtkante vom Drahtrahmen, um die Oberfläche sauber und glatt zu machen

Maximale Kabelgeschwindigkeit:

200 mm/s

Effektive Schweißlänge:

3000 mm

Hochgeschwindigkeitsdraht- und Schneidemaschine:

Stellt die Stapelproduktion von 2 mm bis 4 mm Drähten mit fast fünffache normaler Geschwindigkeit au

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1 Satz

Preis

Verhandelbar

Verpackung Informationen

Meeres würdiges Holzpaket

Lieferzeit

7-30 Arbeitstage nach Erhalt Ihrer Zahlung

Zahlungsbedingungen

L/C, T/T

Versorgungsmaterial-Fähigkeit

50 Sätze pro Monat

Verwandte Produkte

Video

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Erhalten Sie besten Preis

Video

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Erhalten Sie besten Preis

Video

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Erhalten Sie besten Preis

Video

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Kontakt jetzt

Produkt-Beschreibung

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

This wire welding machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Simply load materials manually and remove finished pieces. Ideal for welding mesh within 1000mm × 1000mm range.

Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm × 1000mm

The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products
Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5× normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability
Welding Heads and Fixtures	Custom designed per product drawings
Wire Frame Double T-Butt Machine	Dual-head cross bar welding design

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
