Name: Hwashi CNC Sink Edge Grinding and Polishing Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-AT-PM1200
Price: 20.00 USD
Availability: InStock

Haus > Produkte > WannenSchweißgerät >

Hwashi CNC Sink Edge Grinding and Polishing Machine

CNC Sink Edge Grinding Machine

Sink Edge Grinding Machine

Sink Edge Grinding and Polishing Machine

Herkunftsort:

Guangdong, China

Markenname:

HWASHI

Zertifizierung:

CE, CCC

Modellnummer:

WL-AT-PM1200

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

Name:

Hwashi Wl-at-Pm1200 Automatische Spülmaschine, Wassertank-Schweißproduktionslinie

Durchmesser des Schleifrads:

50 mm

Breite des Schleifbandes:

50 mm

Abschleifender Gurt-drehende Geschwindigkeit:

1400-2800mm/min (justierbar)

X Axle Moving Range:

≥1220mm

Y Axle Moving Range:

≥620mm

Z Axle Moving Range:

≥250mm

Ein Achs-Bewegungsbereich:

360°-Winkel

Bewerteter Luftdruck:

0.8Mpa

Gasverbrauch:

1m3/h

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1 Satz

Preis

US $10,000-30,000 / Set

Verpackung Informationen

Holzverpackungen

Lieferzeit

45 Tage

Versorgungsmaterial-Fähigkeit

50 Stück/Stück pro Monat

Verwandte Produkte

Video

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

Erhalten Sie besten Preis

Video

Schweißmaschine für Küchenwaschbecken / Hotelwaschbecken / Restaurantwaschbecken

Erhalten Sie besten Preis

Video

HWASHI 160KVA Automatische CNC Küchenspülmaschine Schweißmaschine Preis für Küchenspülmaschine / Hotelspülmaschine / Restaurantspülmaschine

Erhalten Sie besten Preis

Video

Industrielle 220V 80KVA Waschbecken-Schweißmaschine für das Schweißen von Edelstahl mit einem Durchmesser von 100-1000 mm

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Kontakt jetzt

Produkt-Beschreibung

Hwashi CNC Sink Edge Grinding and Polishing Machine

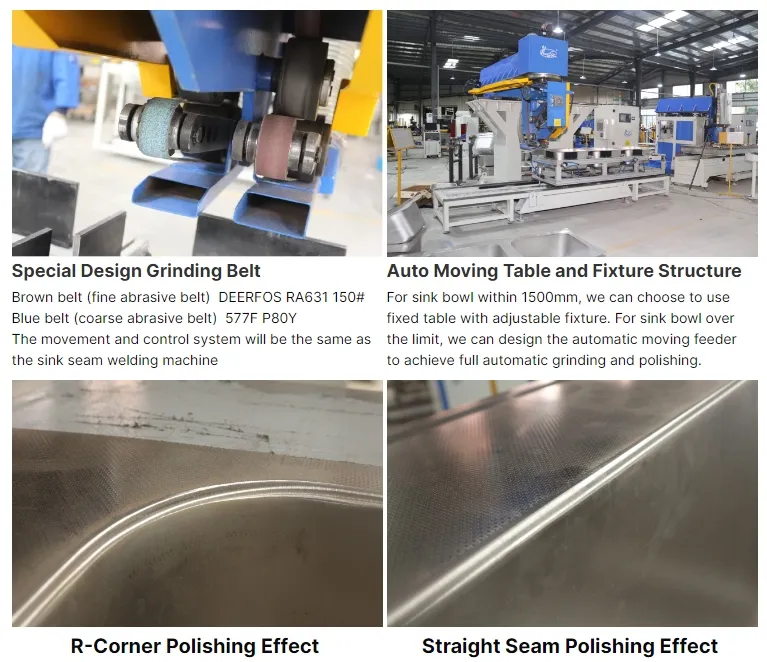

CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.

It is designed to use Mitsubishi professional automatic control system. You only need to input the coordinate data of the product and start the machine, the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program. The worker only needs to put and take out the mould.

The product will be fixed on the locating mould. The servo motor will drive the X and Y axis to run within the preset data of program. The machine could store 15 types of grinding models. The grinding wheel will move along with X direction and the max moving range is 1200mm while the max moving range of Y direction is 600mm. The Z axis can conduct moving up and down within the range of max 210mm while the A axis can conduct 360ºrotating under the control of servo motor.

Hwashi CNC Sink Edge Grinding and Polishing Machine 1

CNC 3 Axis Stainless Steel Sink Seam Welding Machine

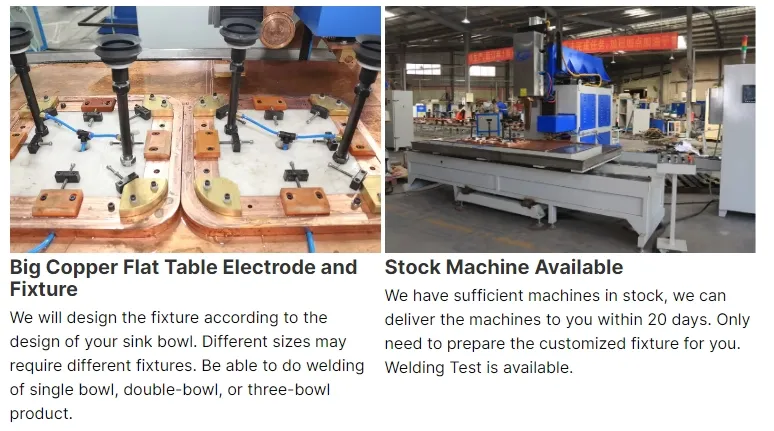

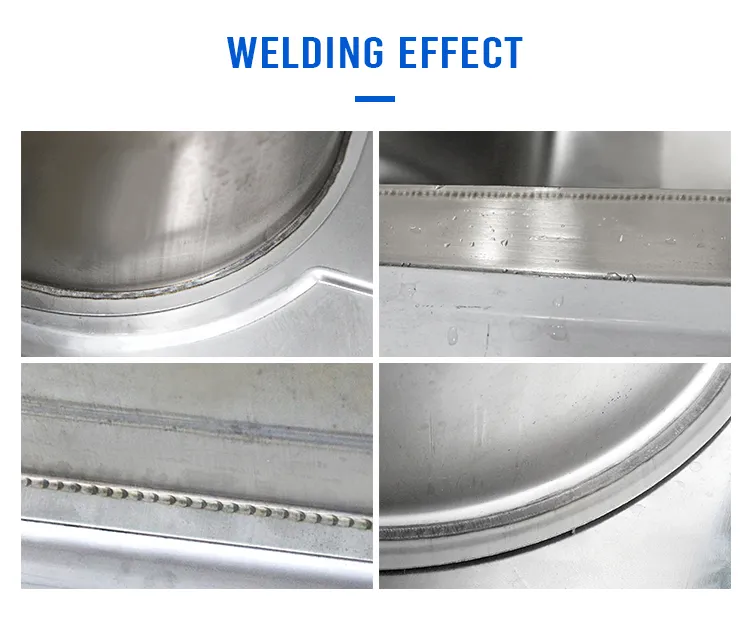

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Hwashi CNC Sink Edge Grinding and Polishing Machine 2

Hwashi CNC Sink Edge Grinding and Polishing Machine 2

Hwashi CNC Sink Edge Grinding and Polishing Machine 3

Hwashi CNC Sink Edge Grinding and Polishing Machine 4

CNC Sink Edges Grinding and Polishing Machine

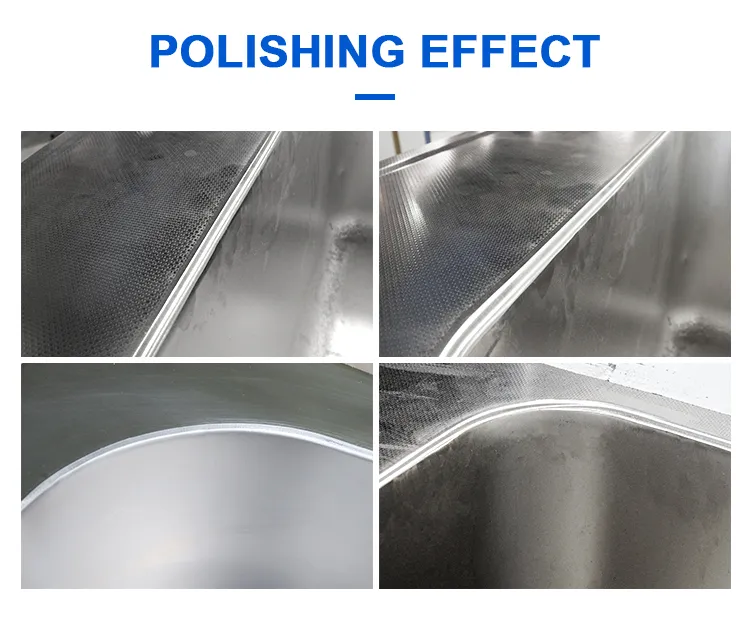

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.

Hwashi CNC Sink Edge Grinding and Polishing Machine 5

CNC Sink Seam Welding Machine	Model	WL-AMF-160K
	Input Power (V/φ)	380V 3φ
	Rated Power (KVA)	160/250KVA (as per material thickness)
	Applicable Material	Stainless Steel 304/201
	Material Thickness	0.8~1.5mm (customized)
	Effective Welding Length	1600-3000mm (customized)
	Effective Welding Width	600-800mm (customized)
	Sink Bowl Shape	Square/Rectangular/Round
	Welding Efficiency	about 40-60sec/bowl (depend on the size of bowl)
CNC Sink Edge Grinding and Polishing Machine	Max. Moving Speed	500mm/sec
	Belt Rotation Speed	1200R/min
	Min. Radius	R40
	Rated Air Pressure	0.6MPa
	Grinding Efficiency	about 60-80sec/bowl (depend on the size of bowl)
